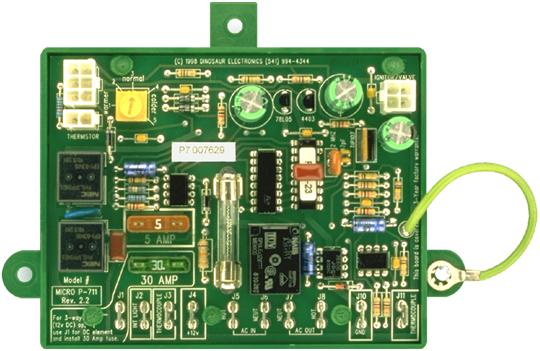

Features:
-
Built in surge protection. Protects from installation errors and the RV Power supply.
-
Fuse protected on the 120 VAC circuit, 12 VDC supply and the DC element.
-
Improved thermocouple circuit to eliminate recurring check light problem.
-
Food saver feature keeps the refrigerator operating if the eyebrow board or communication link fails.
-
Built in control allows temperature adjustment in the "Dumb Eyebrow" fixed temperature Americana and Freedom series refrigerators.
-
The temperature control also allows compensation for aging and production variations in those units that have the -1-2-3-4-5- "Smart Eyebrow" temperature control on the operator panel.
|
-
Built in microcontoller for highly reliable operation
-
Universal 2-way or 3-way (AC / DC / Gas) operation
-
Install optional fuse (provided) for 3-way operation
|
Replaces Control Boards:
NDR1062,1272 1492 ,2652,2852,2807
2607,2820,7732,7030,3863,3862,7132612,2812
